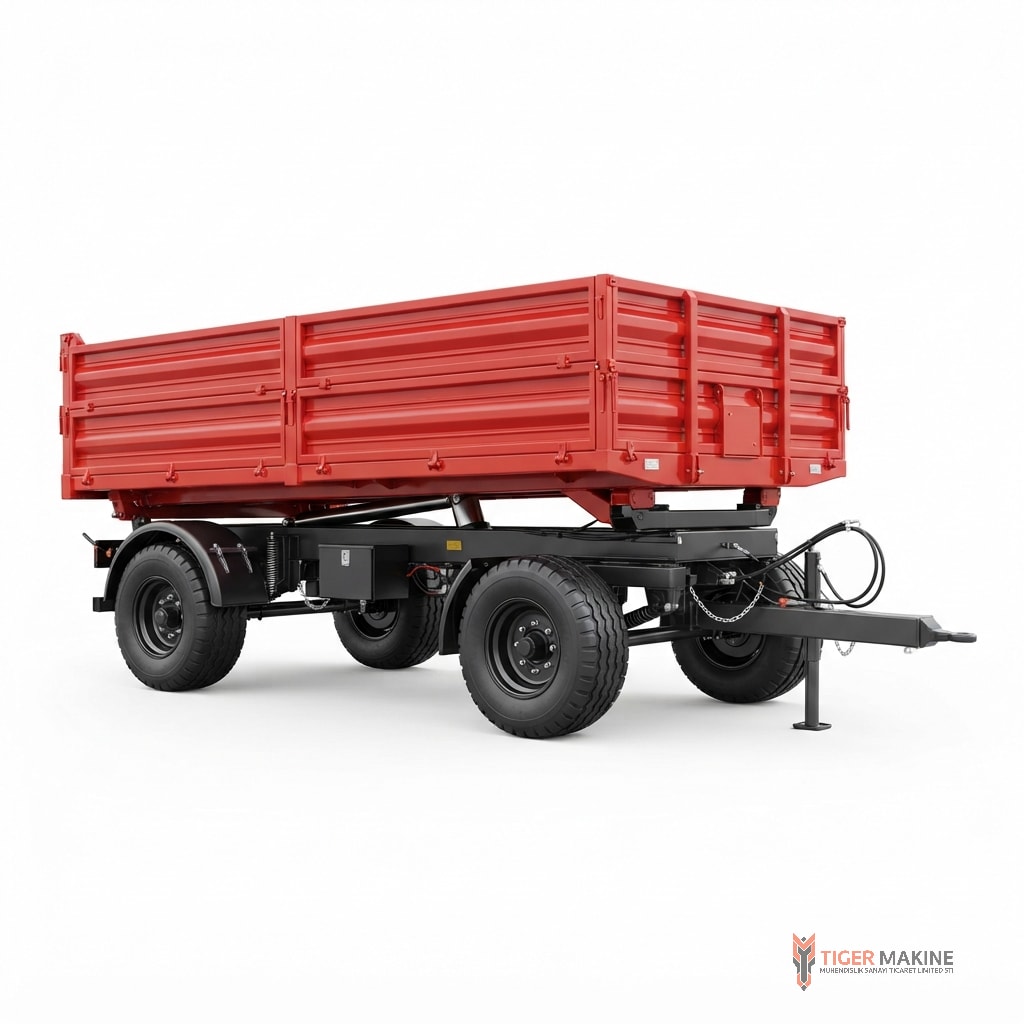

Double-Axle Tipping Trolley
Tandem axles and four wheels give extra stability when carrying crops, soil, gravel or building material.
- Tandem axles
- Hydraulic ram
- Tough body
About this product
How the Double-Axle Tipping Trolley works
The double-axle tipping trolley is a strong trailer for farmers and contractors who regularly carry heavy loads. It moves crops, soil, gravel or construction material in large quantities, and its hydraulic tipping system unloads quickly and smoothly, saving time, fuel and labour.
The tandem axles and four-wheel support add stability and balance. The body is about 15 × 8 ft and 2.0–2.5 ft high in heavy-duty steel with a 6 mm floor; it carries 8–12 tons (optionally up to 20), tips at 54°–60° and weighs 1,800–3,300 kg unloaded. It needs a tractor of 75 HP or more. All specifications can be customised.
This trolley needs a tractor of 75 HP or more, so check your tractor first. It is built for 8–12 tons, with up to 20 tons available on request, and can be customised in size, hydraulics and braking. Air brakes are available if you drive on public roads.
Before you buy the Double-Axle Tipping Trolley
With tandem axles and four wheels, this trolley is built for stability and heavy loads, with an optional capacity of 8 to 12 tons. It needs a tractor of 75 HP or more. It is a good fit for contractors and larger farms that carry soil, crops and building material daily.
Specifications
Specifications
Double-Axle Tipping Trolley: the specifications
| Tractor Requirement | 75 HP & Above |
|---|---|
| Carrying Capacity | 8 – 12 Tons (optional upgrade up to 20 Tons) |
| Body Size (L × W × H) | Approx. 15' × 8' × 2.0 – 2.5' |
| Axle / Spindle | Dual tandem axle; 70 mm spindles / 5.0 – 5.5" tube, 3/8" wall |
| No. of Wheels | 4 (tandem) |
| Tyre / Rim Size | 8.25 – 20 (4 rims) or 400/60-15.5 (market dependent) |
| Hydraulic Lifting | Single or 2× multi-stage hydraulic ram, double-acting system |
| Tipping Angle | 54° – 60° |
| Body Material | Heavy-duty steel, 6 mm floor, side height 500 – 600 mm |
| Braking System | Mechanical / Hydraulic (Air brakes available on request) |
| Weight (Unloaded) | 1,800 – 3,300 kg (depends on model) |
Sizes available
Need another size of the Double-Axle Tipping Trolley?
Ask about sizesKey features
Key features of the Double-Axle Tipping Trolley
Tandem axles
Four wheels for balance under load.
Hydraulic ram
Tips at 54° to 60° for fast unloading.
Tough body
Heavy-duty steel with a 6 mm floor.
Questions
Questions about the Double-Axle Tipping Trolley
Two axles share the load, so the trolley rides more steadily over rough ground and carries more. It also reduces the pressure on the tyres.
